Inchgower Machinery Co.
IMPORTERS & DISTRIBUTORS OF GRAEME HOEME PLOUGHS

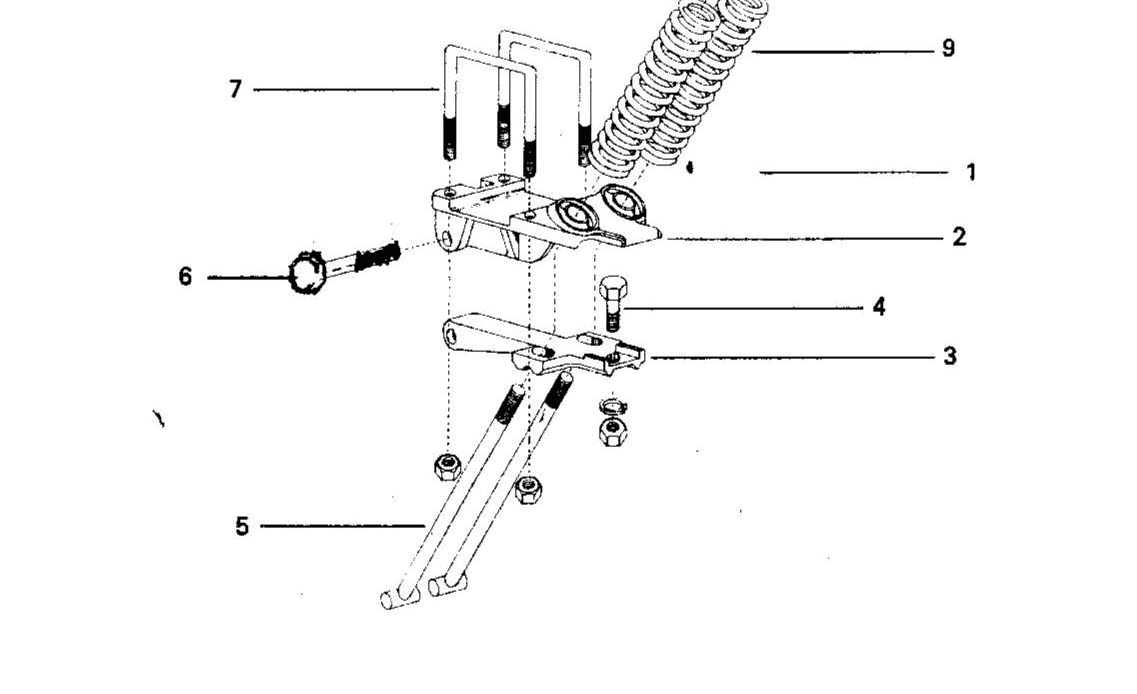

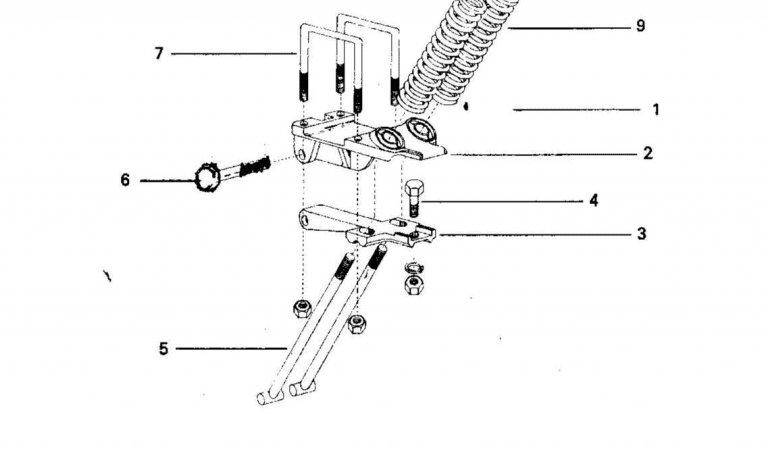

| 1 | March 2022 | Prices GST Exclusive | |
|---|---|---|---|
| 1 | CS1609 | Clamp Complete | $945.00 |
| CS1601 | Clamp/hinge kit (includes u-bolts) | $616.00 | |
| 2 | CS1614 | Clamp only | $324.00 |
| 3 | CS1631 | Hinge | $148.00 |
| 4 | CS1615 | U-bolt & nuts, ¾” x 2”, tyne to hinge | $16.40 |
| CS1616 | Plate, tyne to hinge U-bolt | $8.00 | |
| CS1632 | Bush, ¾” ID, hardened hinge | $10.00 | |
| HW123 | Bolt/nut/spring washer, ¾” x 2 ½” | $5.00 | |
| 5 | HW300 | T-bolt/nut, ¾” x 20 ½” (LONG) | $24.00 |
| 6 | CS1620 | Bolt/nylock nut/flat washer, ¾” x 5” | $12.50 |
| 7 | HW167 | U-bolt, ¾ x 4”, clamp to frame (4/tyne) | $22.70 |
| 8 | CS1607 | Spring retainer | $30.00 |
| 9 | CS1625 | Coil spring, 15” (LONG) | $120.00 |
| CS1617 | Pipe 1” inside spring | $12.00 | |
| CS1618 | Top plate, spring | $5.00 | |
| S2800 | Shank or tyne, 1¼ x 32” | $220.00 | |
| Tyne Assembly, complete includes tyne, long springs | $1,165.00 |

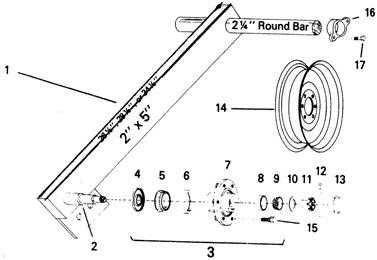

| 1 | March 2022 | Prices GST Exclusive | |
|---|---|---|---|
| 1 | XL8065 | LH axle & spindle | $196.68 |
| XL8066 | RH axle & spindle | $196.68 | |
| XL8037 | LH axle & spindle | $189.52 | |
| XL8038 | RH axle & spindle | $189.52 | |
| 2 | Q6333 | Axle spindle | $39.45 |
| 3 | Q6324 | Hub complete | $384.80 |
| 4 | Q6321 | Grease seal …….C8317 | $16.00 |
| 5 | Q6322 | Large bearing …. 342A | $97.00 |
| 6 | Q6323 | Large cone ……….. 332 | $45.00 |
| 7 | Q6320 | Hub only standard short axle Hub only long axle EWC Q709 |
$150.00 |
| 9 | Q6343 | Small Bearing with cup.. 14137A | $67.50 |
| 10 | HW152 | Flat washer 7/8” | $0.60 |
| 11 | HW137 | Castellated nut 7/8” | $6.50 |
| 12 | HW169 | Cotter pin | $0.30 |
| 13 | Q637 | Hub cap | $9.30 |
| 14 | XL8039 | Wheel, 6 bolt, 15” x 6” | $150.00 |
| Wheel 6 bolt, 16” x 6” Neil's TP529 | $150.00 | ||
| 15 | HW162 | Wheel studs | $3.00 |
| 16 | XL8014 | Axle bearing casting | $11.20 |
| 17 | HW112 | Bolt/nut/washer 5/8” x 2” | $1.90 |
| Bearings Long | Axle GH | |
|---|---|---|
| Sml brg kit | LM67049 | $42.00 |
| Lge brg kit | JL69349 | $60.00 |
| Seal | CR16290 | $15.00 |
| Bearings Andy’s 20” | ||
|---|---|---|
| Lge Brg set | 30213 | $75.00 |
| Sml Brg set | 30210 | $35.00 |
| Seal | TC12669 | $23.00 |
CHISEL PLOUGH SPARE PARTS
| March 2022 | ||
|---|---|---|
| Frame Parts | ||
| DC-2147 | Cylinder Post | $ 72.45 |
| DC-.2150 | 1-71 Rock-shaft pillar block | $40.00 |
| DC-2151 | 1-72 Pillar block cap | $20.00 |
| DC-2152 | 1-71-172 Pillar block assembly | $60.00 |
| HW-161 | Pillar block wedge | $3.45 |
| HW-112 | 5/8” x 2 ½” bolt/nut/washer | $3.16 |
| T-7058 | Andiline AST15 Jack | $85.00 |
| H-3802 | Hitch plate left | $63.73 |
| H-3803 | Hitch plate right | $63.73 |
| HW-214 | 7/8” x 5 ½” bolt/nut/washer | $12.60 |
| H-3828 | Hitch | $299.25 |
| H-3855 | Hitch link | $122.20 |
| H-3826 | Tongue straps (pair) | $46.90 |
| HW-222 | 1 ¼” x 7" bolt/nut/washer | $74.29 |
| HW-218 | 1" x 7" bolt/nut/washer | $31.34 |
| DC-2163 | Male frame hinge | $240.00 |
| DC-2164 | Female frame hinge | $230.00 |
| DC-2205 | Female frame hinge | $230.00 |
| HW-232 | 1" x 5" bolt/nut/washer | $17.85 |
| HW-160 | Frame wedge | $3.85 |
| HW-119 | 5/8" x 5 ½"bolt/nut/washer | $5.80 |
| HW-120 | 5/8" x 6" bolt/nut/washer | $6.16 |
| HW-128 | ¾" x 6" bolt/nut/washer | $8.24 |
| TB-7532 | Turnbuckle assembly | $220.50 |
| TB-7534 | Turnbuckle right | $88.20 |
| TB-7535 | Turnbuckle left | $88.20 |
| TB-7536 | Turnbuckle body | $44.10 |
| HW-226 | 1 ¼" nut Turnbuckle | $7.00 |
| Wheel arm link bushes $3.00 |
| Hydraulic Cylinder Seal Kits | |||
|---|---|---|---|
| HY-4213 | 3110-34 | 3 ½" Lantex | $38.50 |
| HY-4212 | 9300 | 3 1/2 Prince | $60.00 |
| HY-4214 | 9400 | 4" Prince | $41.50 |
| HY-4260 | 17916 | 4" Prince W/stroke control | $44.21 |
| HY-4261 | 3112-34 & 3228-34 | 4" Lantex with stroke control | $50.00 |
| HY-4216 | 9500 | 5" Prince | $46.25 |
| HY-4217 | 3114-34 | 5" Lantex | $46.25 |
| HY-4262 | 18816 | 5" Prince W/stroke control | $110.00 |
| HY-4263 | 3114-34 & 3228-34 | 5" Lantex with stroke control | $52.21 |
| HY-4380 | Prince stroke control assy | $30.00 | |
| Ram Shafts | $200.00 | 3 ½”. Ram end | $45.00 |
PO Box 380 Forbes NSW 2871 Phone 02 6852 1980
Mobile 0429 151 280 E-mail: [email protected]
Recommended spacing of the lifters is 300mm or one per foot across the harvester front.
